BAD BOY KICKED THEIR MAVERICK UP A NOTCH

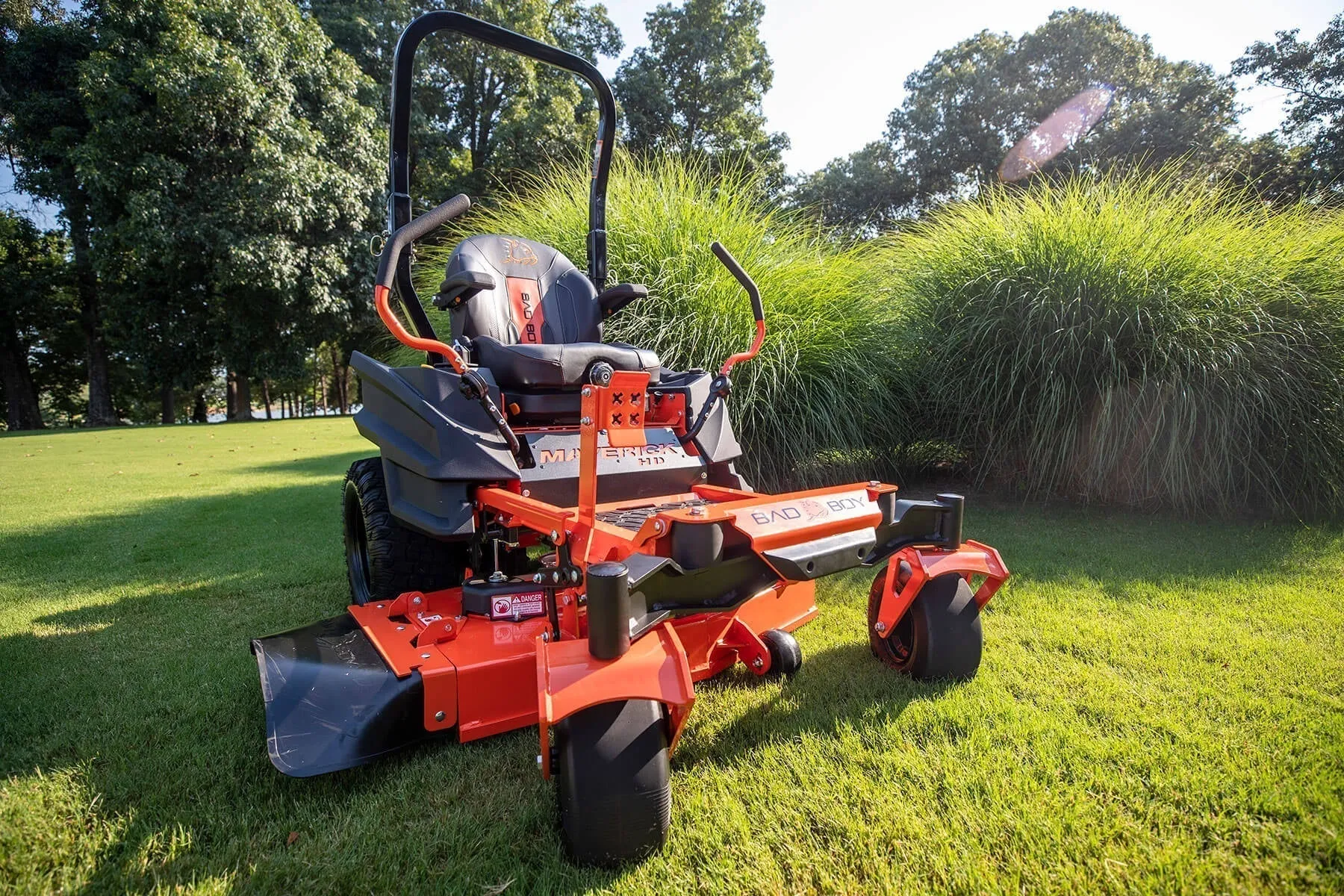

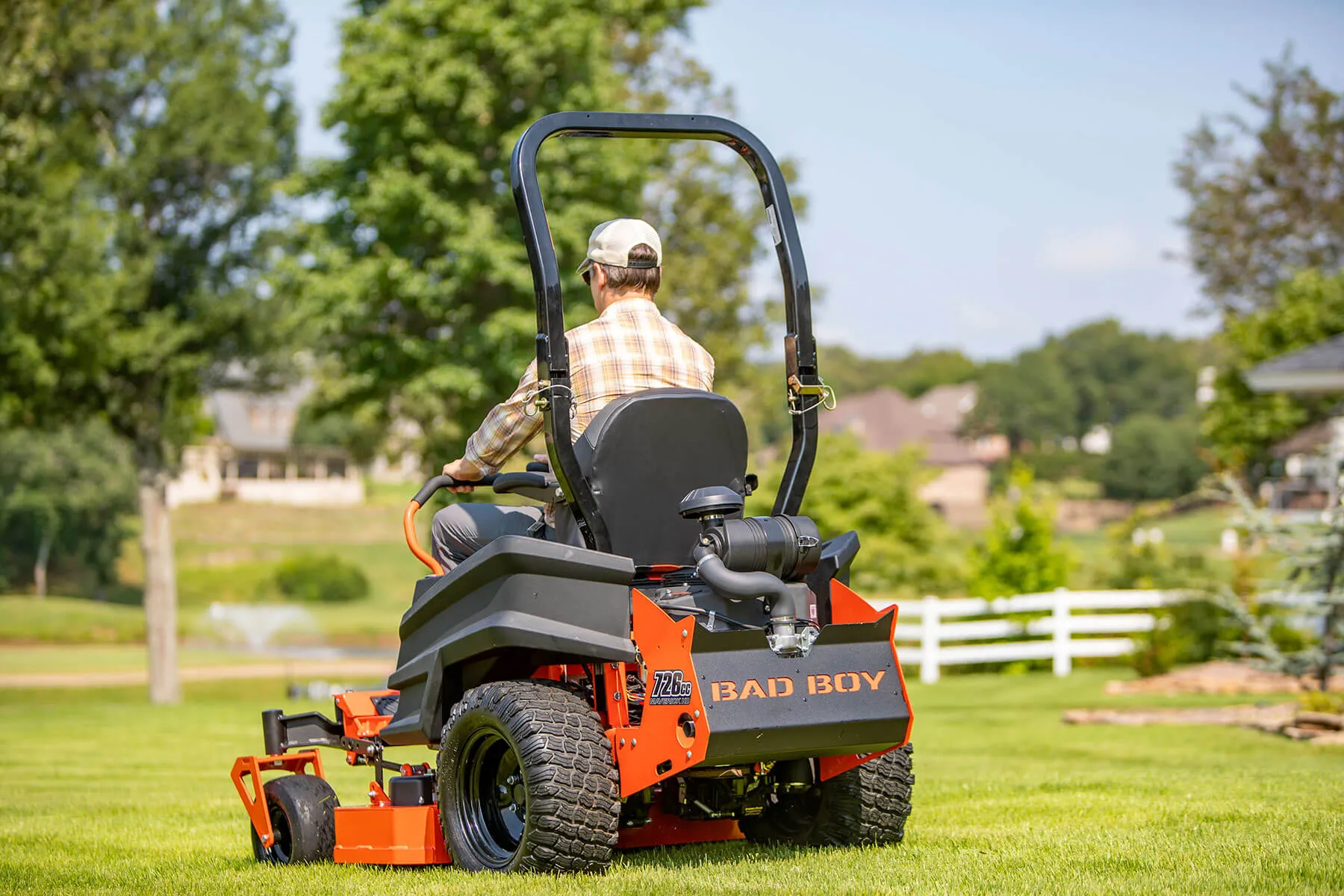

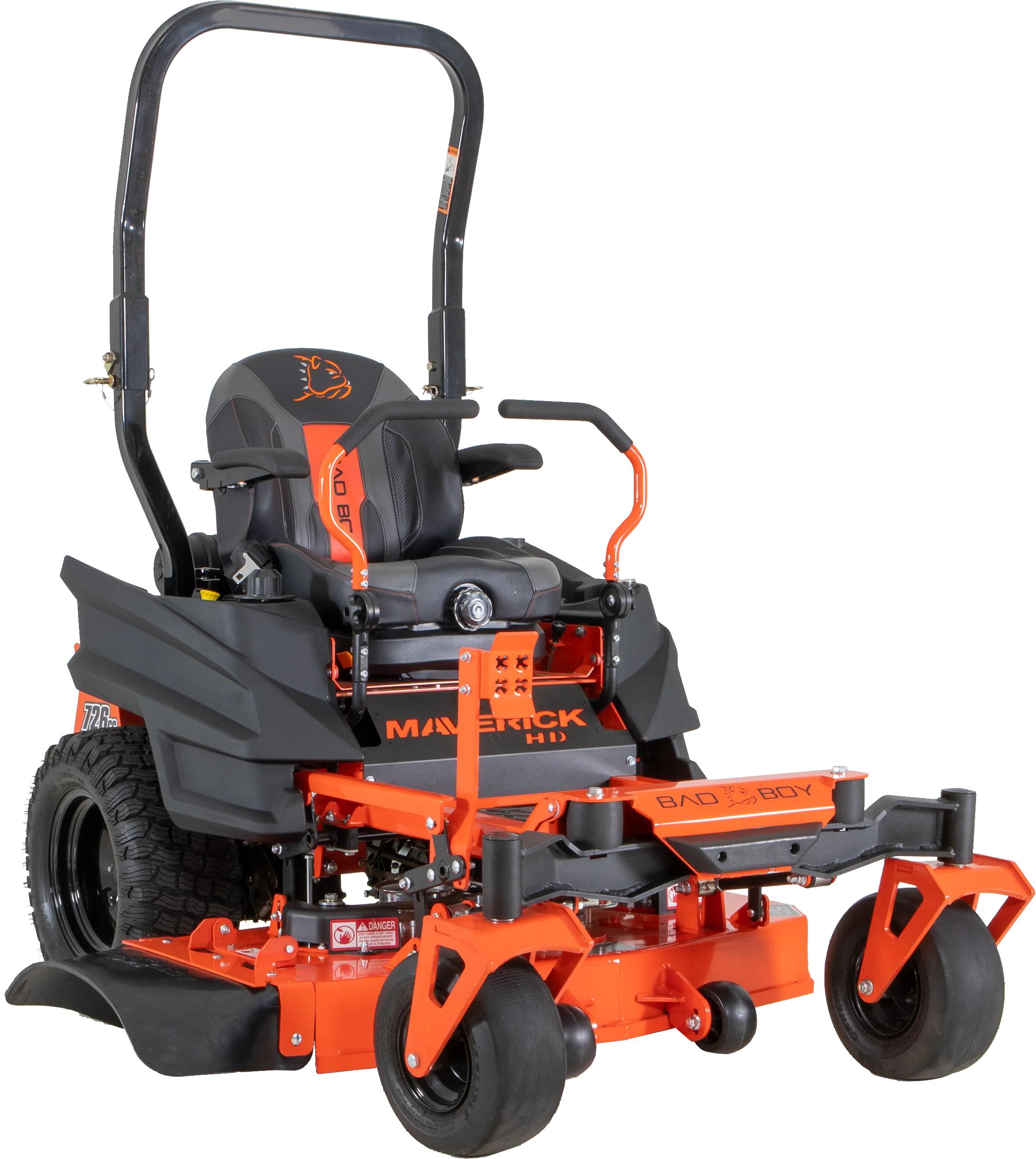

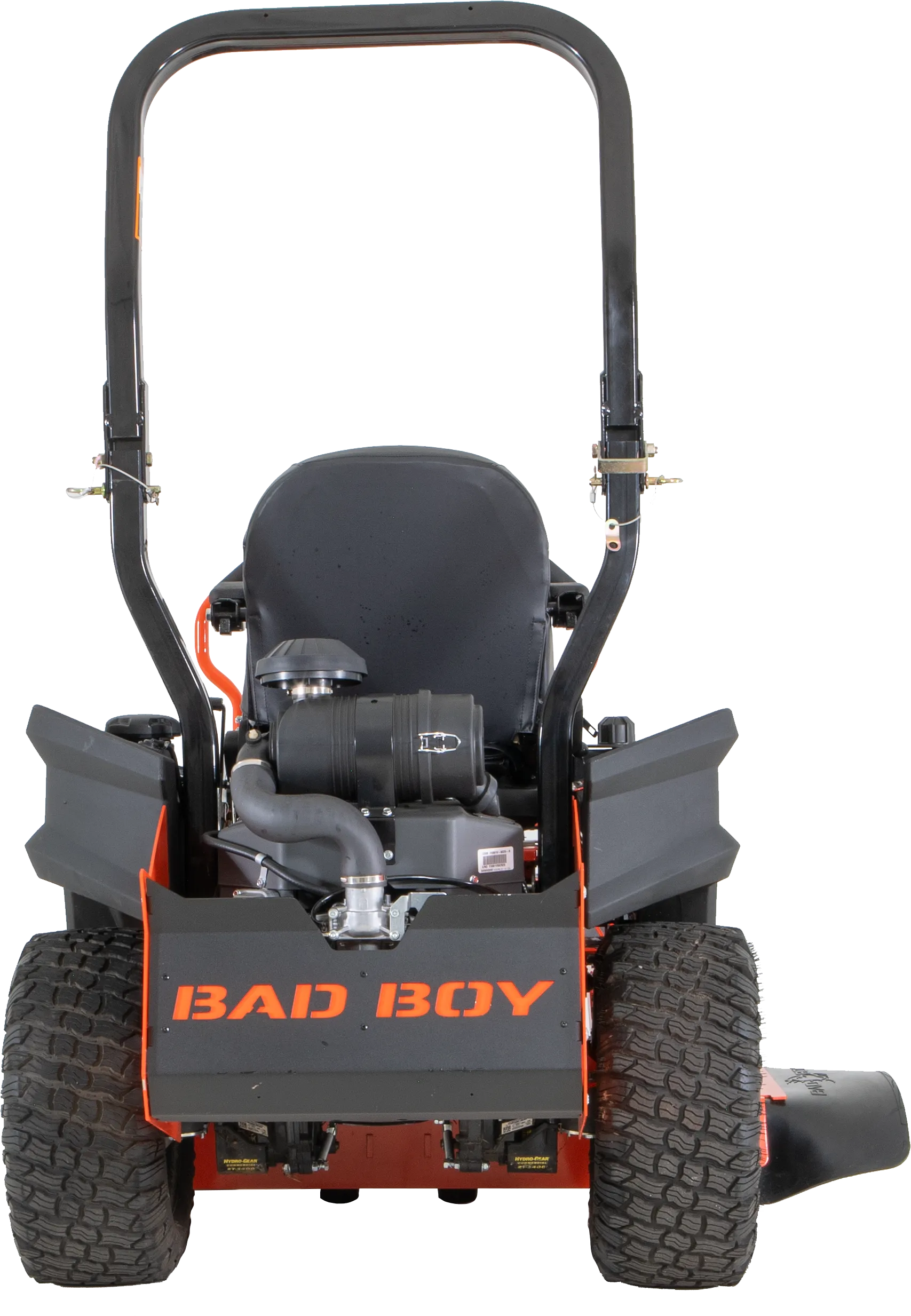

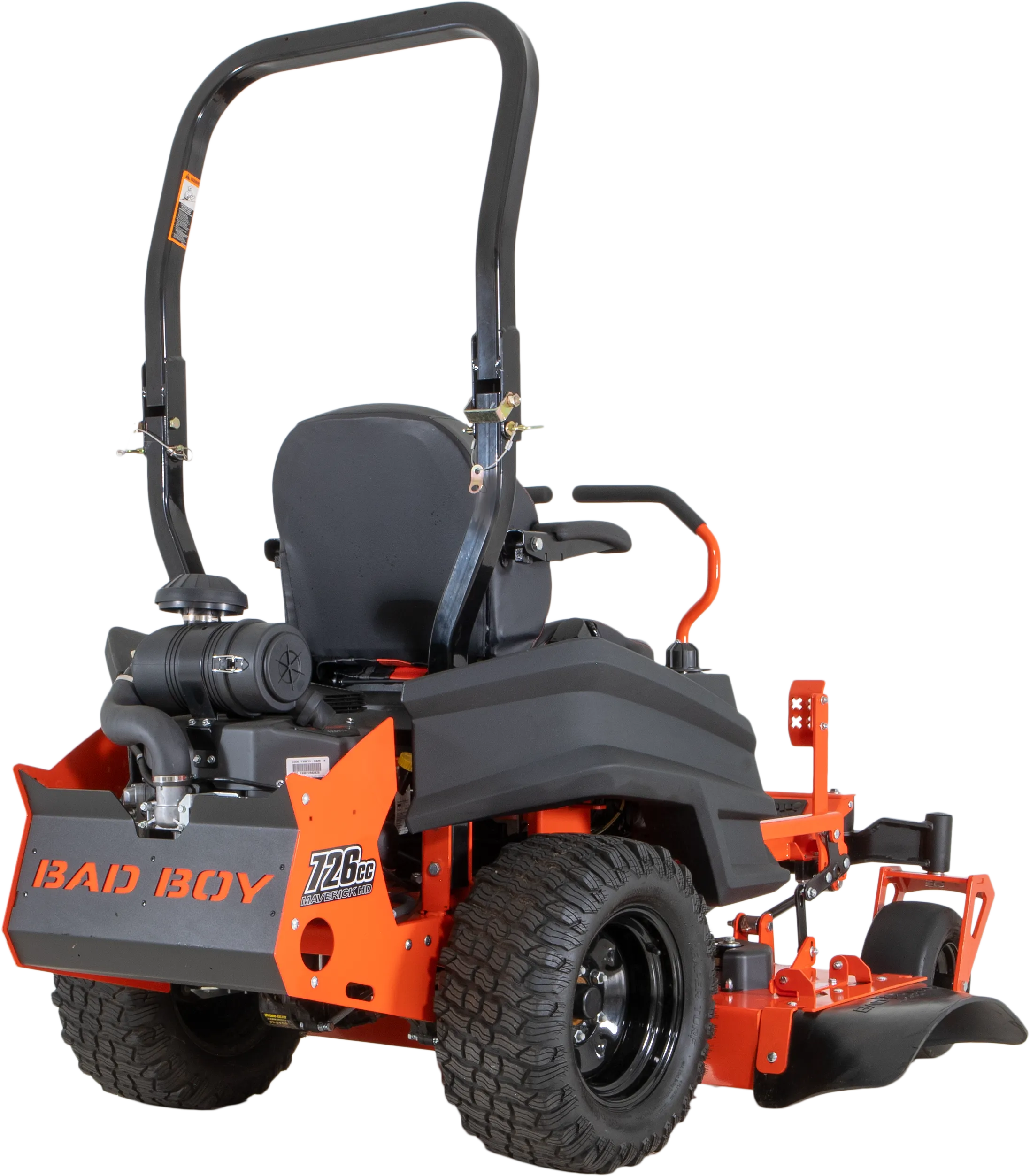

Bad Boy has taken their popular Maverick and turned it pro. They gave it larger Hydro-Gear® drives, bigger engine options, and a premium suspension seat for the all-day, everyday performance. There’s also a new compact, gate-entering 42” model that can get in and out of most anywhere, leaving behind a great cut like only a Bad Boy can.
PRO PERFORMANCE THAT GOES ANYWHERE

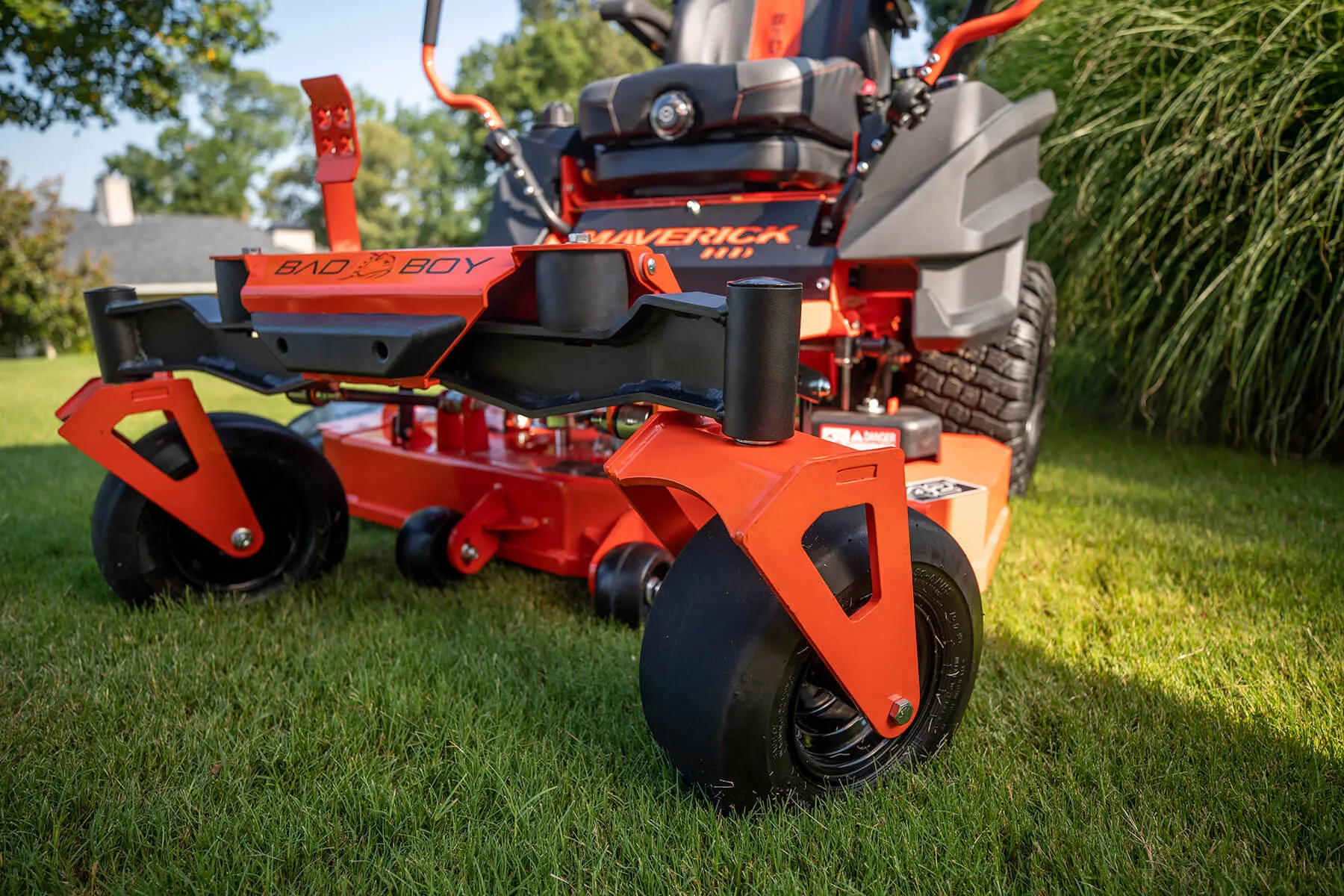

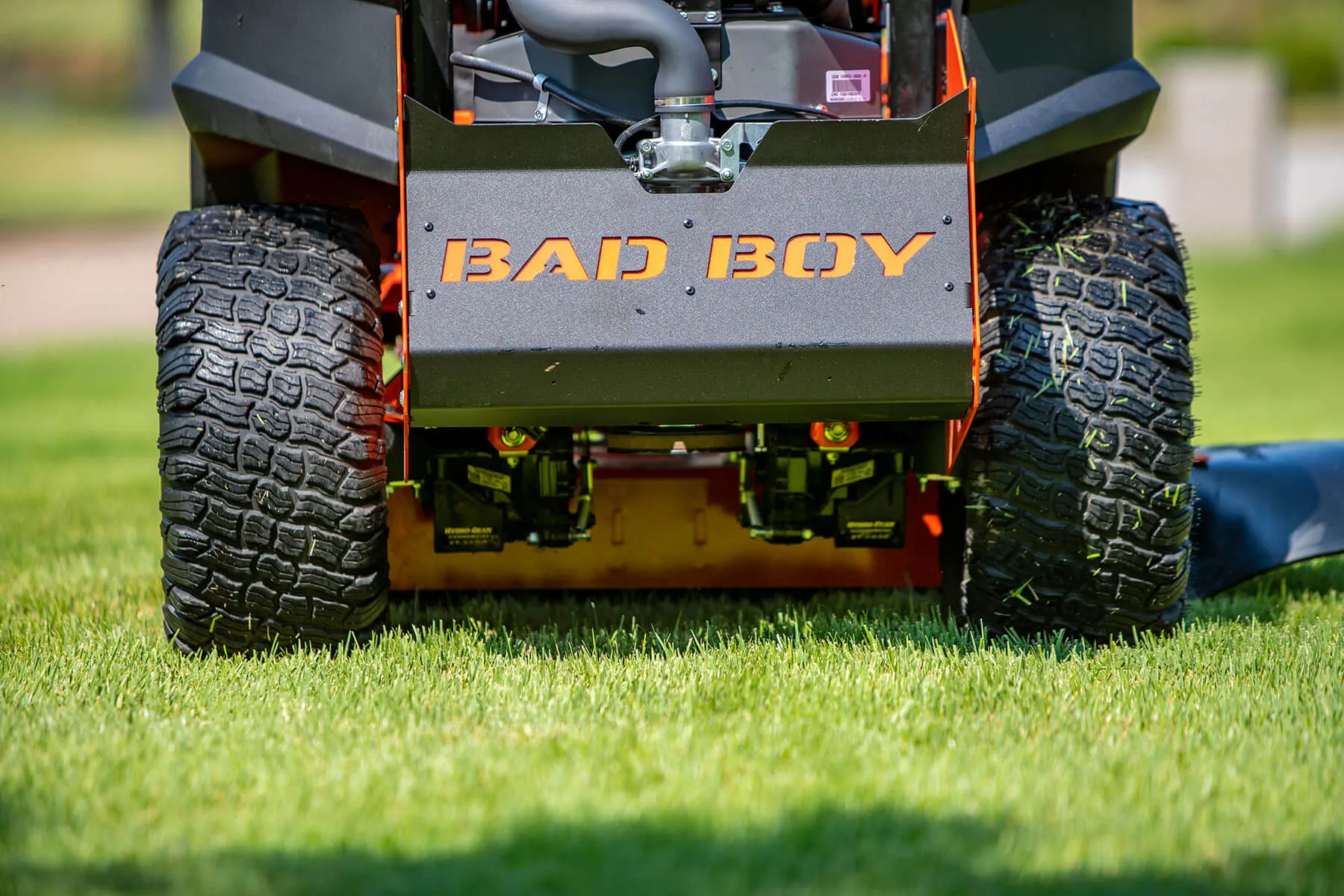

The All-New Maverick HD's dual high-performance Hydro-Gear 3400 Integrated Drive System provides reliable, self-contained power and performance. Bad Boy's patented independent, suspended cast front I-Beam rails support 3/8˝ Steel Front Forks that lead the industry in strength and durability. Available in five engine options and four deck sizes that can squeeze you into almost anywhere.
STANDARD FEATURES
- Dual Hydro-Gear® 3400 Series Integrated Drive Systems
- Patented EZ-Ride® System
- Patented Independent Front Suspension
- I-Beam Front Rails
- Heavy-Gauge, All-Steel, All-Welded Frame
- Industry-Leading 3/8˝ Steel Front Forks
- 7-Gauge All Steel, Formed and Welded Deck with Reinforced Edges
- PEER, Maintenance-Free Spindles

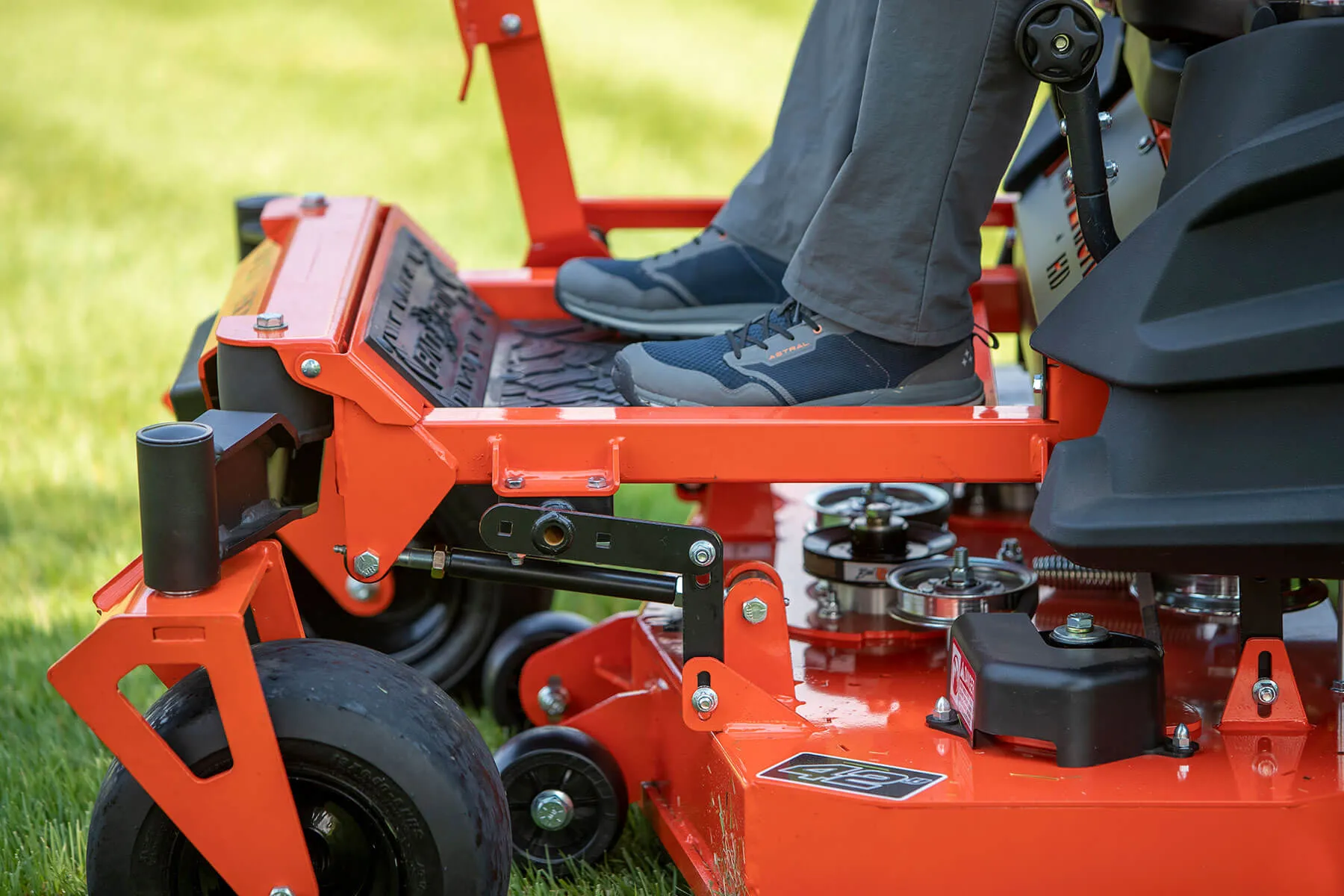

- Deck Lift Pedal with Deck Dial Adjustment
- Seat Lifts for Easy Maintenance and Cleaning
- Adjustable Steering Arms
- Electric PTO
- Premium Adjustable Suspension Seat
STRENGTH TO GO ANYWHERE YOU NEED

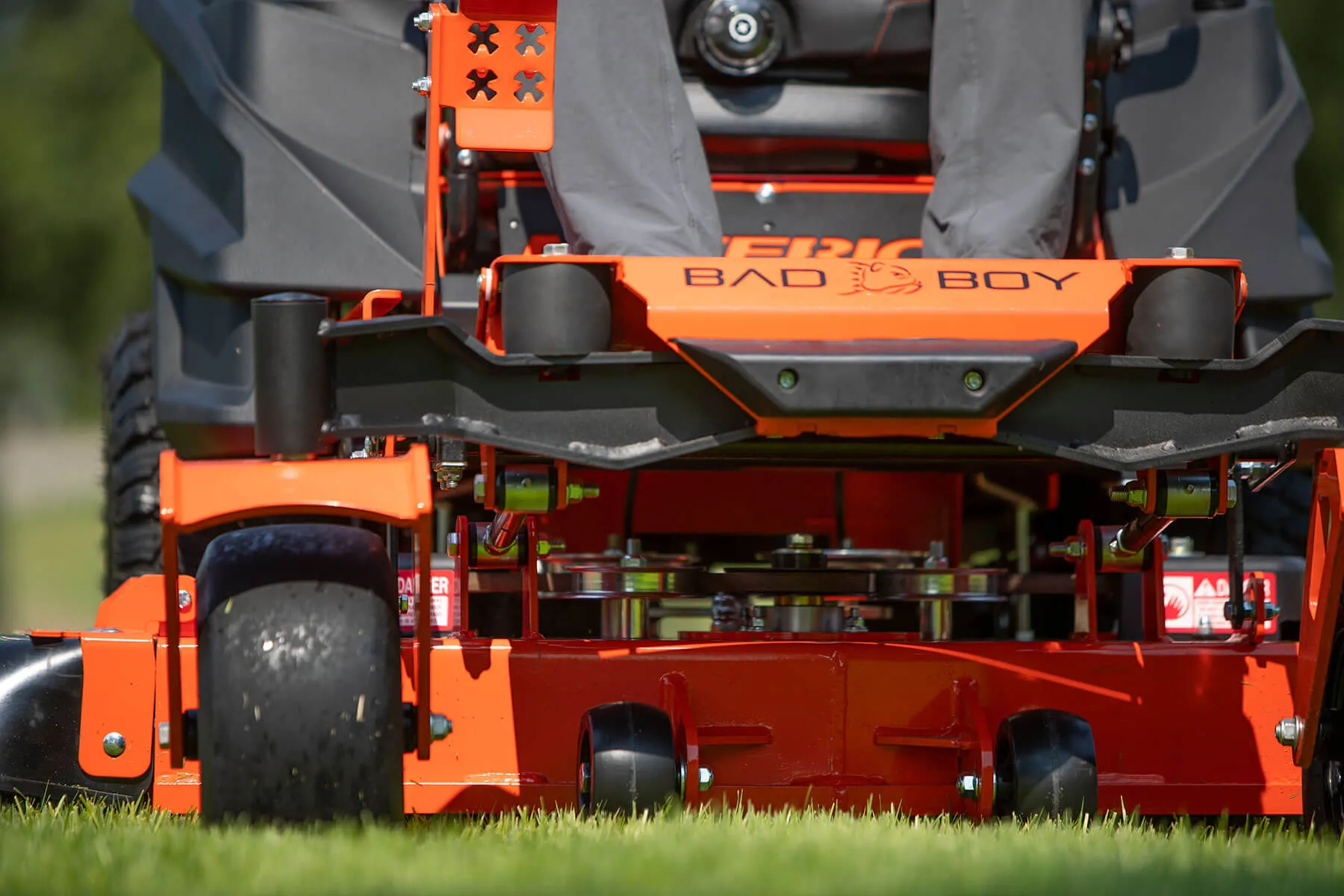

Heavy-gauge, all-steel, all-welded, and fabricated 2˝ x 2˝ frame rail provide the backbone for the commercial-duty Maverick HD. Patented Dual Deck Support Isolators help minimize damage from side impacts. The solid steel, 7-gauge formed and welded deck with reinforced 3/8˝ sides features an improved baffling system that provides greater grass lifting power for an even cleaner cut. And all of this is packed on a lower profile frame that improves stability on inclines and uneven turf.
COMPACT TO FIT WHERE OTHERS CAN'T

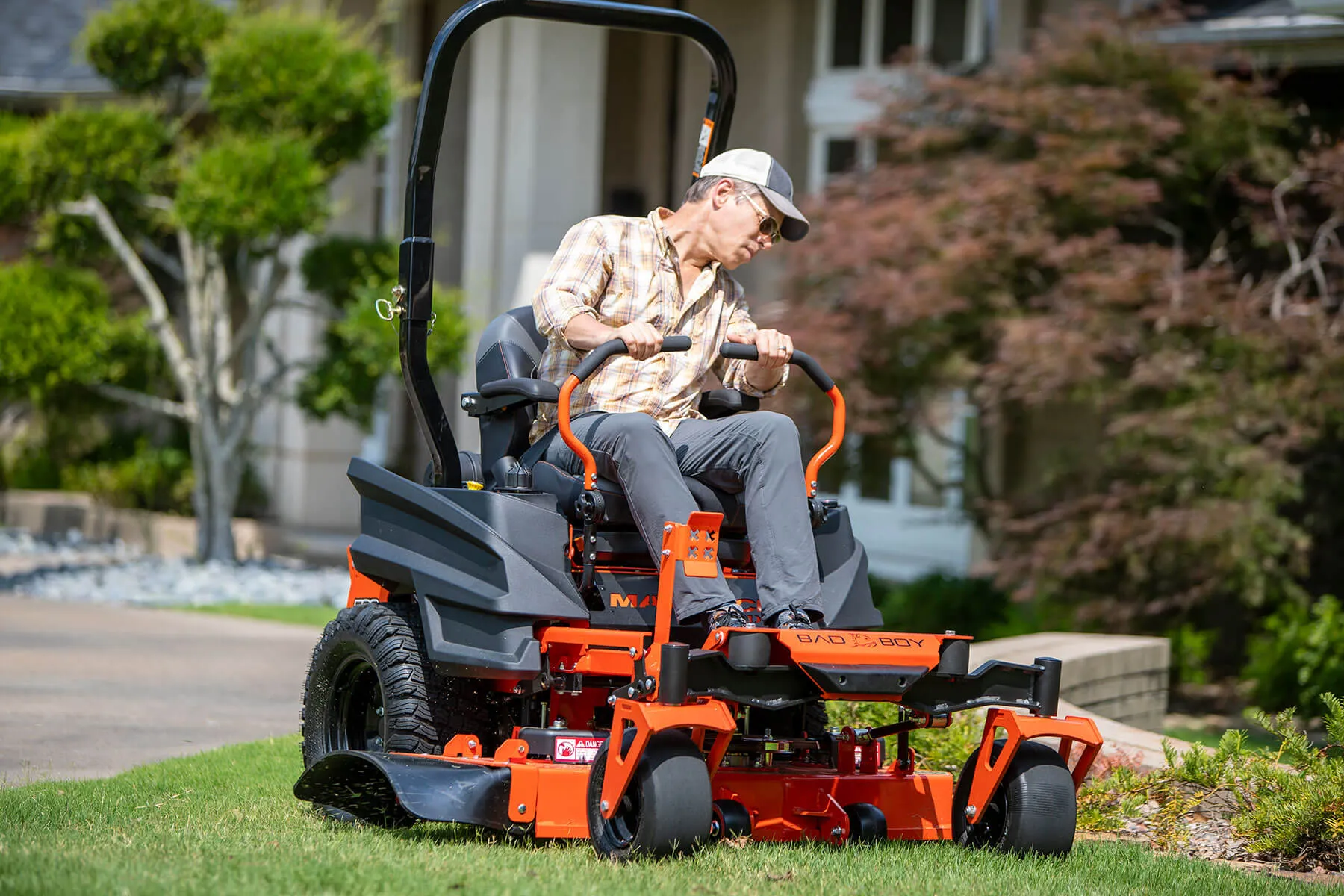

Smoother steering and tighter, more precise controls start with our steering dampening system. Even the steering arms are adjustable for an exact operator fit. Bad Boy's premium Suspension Seat with padded armrests is fully adjustable and cushioned with side and upper back support for day-long performance comfort. Bad Boy's unique Deck Lift Pedal can be changed to either side and allows the deck to be locked in place with a quick twist of the Deck Lift Dial. With Bad Boy's nimble 42" deck option it may be their most compact zero-turn, but it’s still big on classic Bad Boy performance.

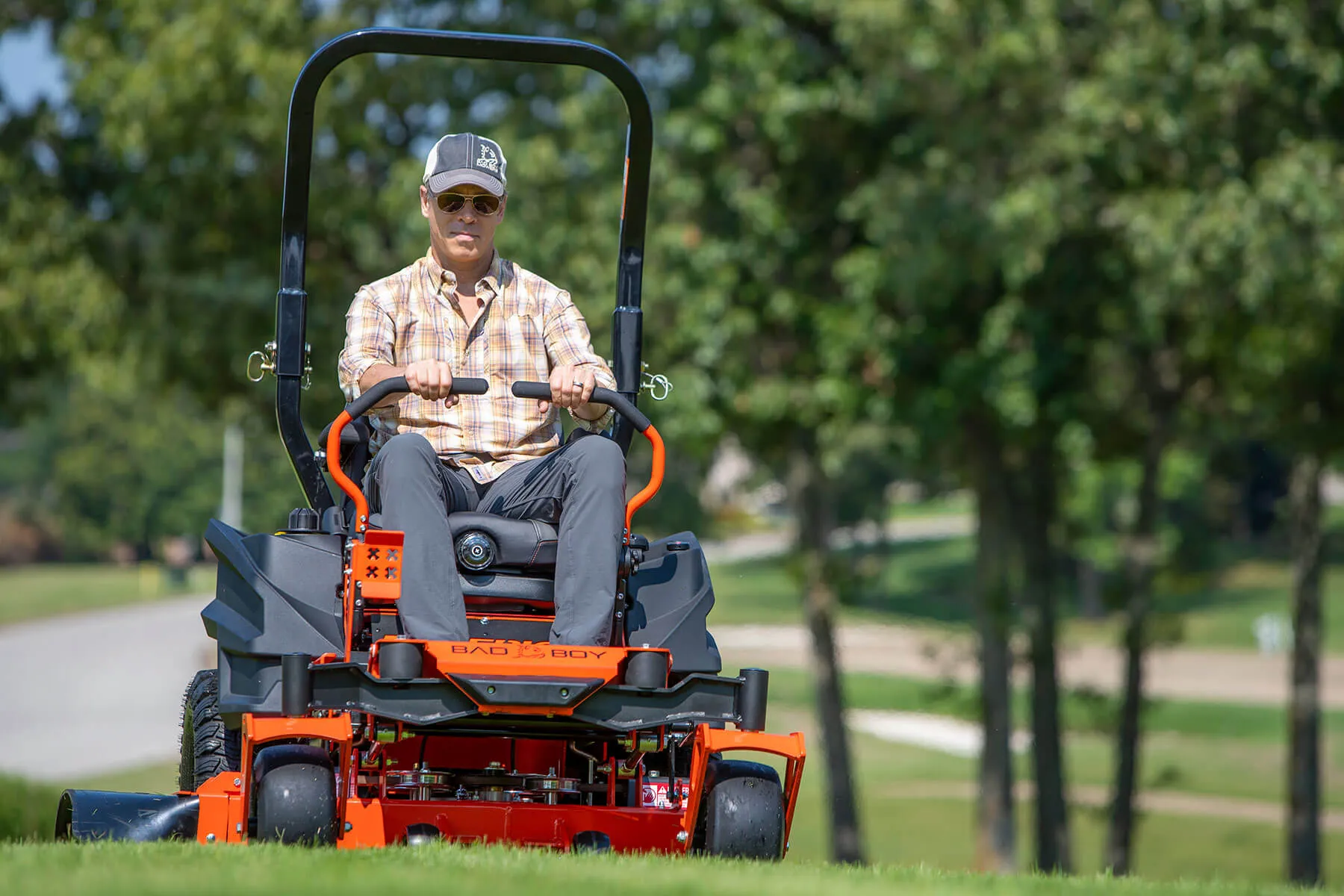

PREMIUM SUSPENSION SEAT FOR DIALED-IN COMFORT
Fully adjustable to operator weight and height, Bad Boy's seat also features padded adjustable armrests for the perfect fit.

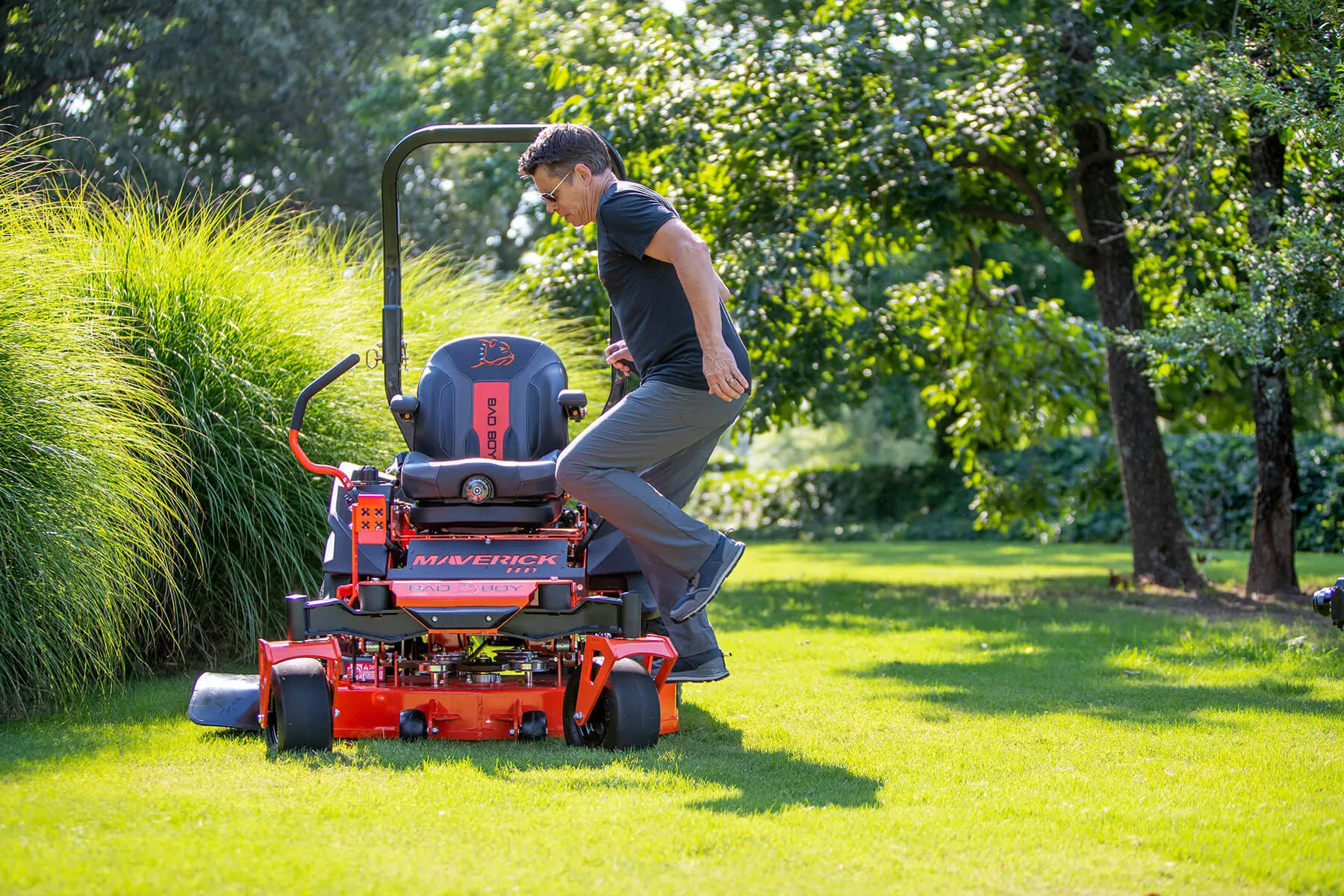

GATE-FITTING COMPACT SIZE FOR ACCESS TO MORE PLACES
Bad Boy's Compact 42” Deck version lets the Maverick HD slip into areas that might otherwise be too tight to get into.
EZ-RIDE® SUSPENSION
Patented suspension system is unique to integrated drive systems.
Maverick HD Accessories
|
|
| Advanced Chute System |
|
| Mount Assist Handle |
|
| Caster Brake Kit |
|
| Electric Actuator Kit | |
| Maverick HD Storage Basket |
|
| Adjustable Steering Arms | |
| Armrest Assembly | |
| Mower Cover | |
| Dual Front LED Lights | |
| Seat Isolation Kit | |
| 54" Mulching Kit w/ Blades |
|
| 54" Gator Mulching Blade |
|
| 54" Wavy Mulching Blade |
|
Striping Kits |
|
| Deck Mounted Striping Kit | |
| Frame Mounted Striping Kit | |
Seats |
|
| Maverick HD Standard Seat | |
ROPS Kits |
|
| Roll Over Protection System Kit (ROPS) |
|
| ROPS Weed Eater Rack | |
| ROPS Caution Light Kit | |
| ROPS Sound bar w/ 2x2 clamps & hardware | |
| ROPS LED Light Kit w/ 2x2 Mount Hardware | |
| ROPS Hard Top Canopy | |
Bagging Systems |
|
| Bad Boy 2 Bagger System | |
| Accelerator Grass Catcher | |
Hitch Kits & Related Accessories |
|
| Maverick Bolt-On Hitch Kit |
|
| 2" Front Receiver (Hardware Included) | |
| Receiver Hitch (Slide In) |
|
| Bent Hitch Pin for Slide In Hitch | |
| Front Mount Tool Box (must have 093-1140-00 Front Receiver) |
|
| Front Mount Cargo Basket (must have 093-1140-00 Front Receiver) |
|

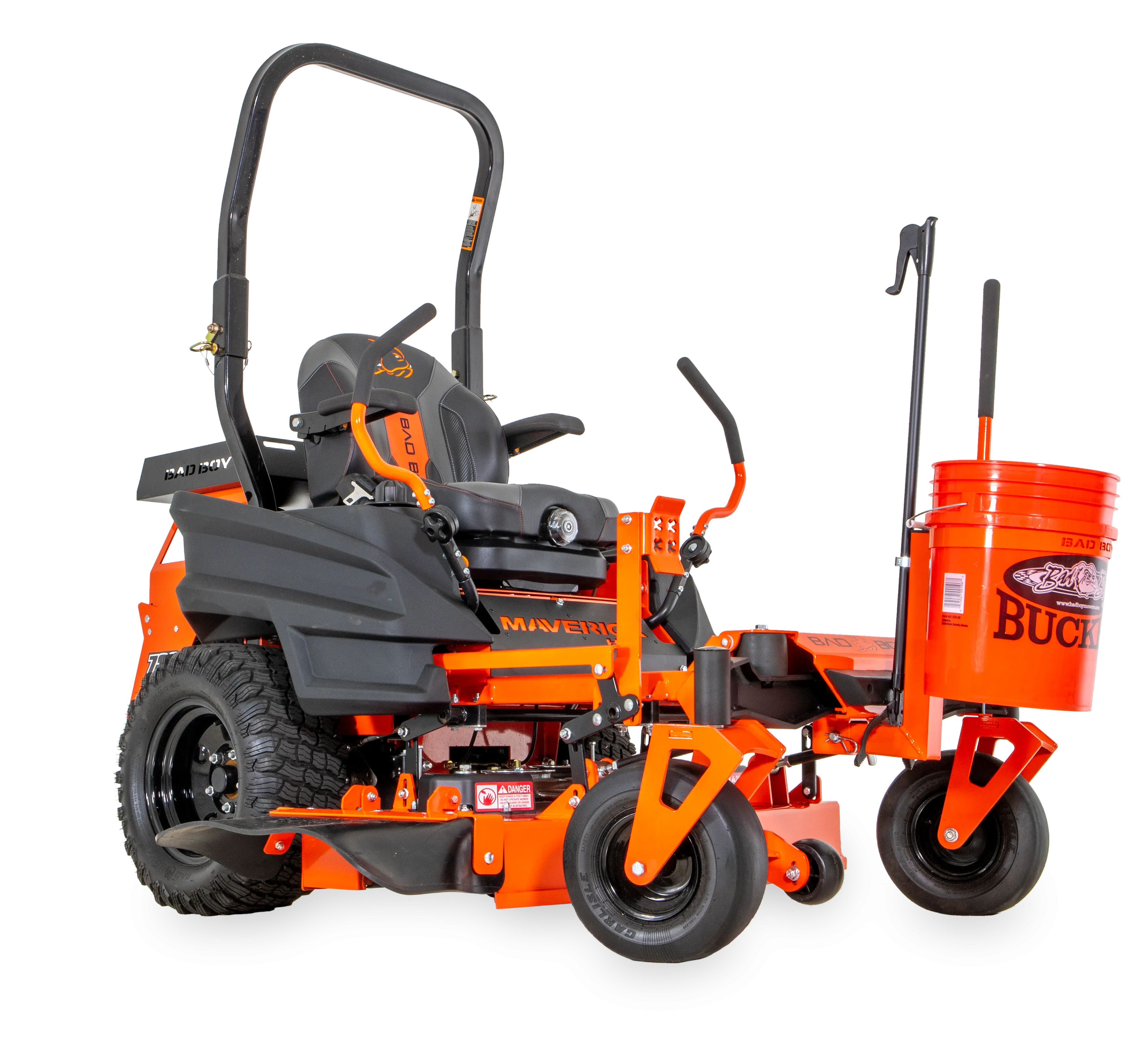

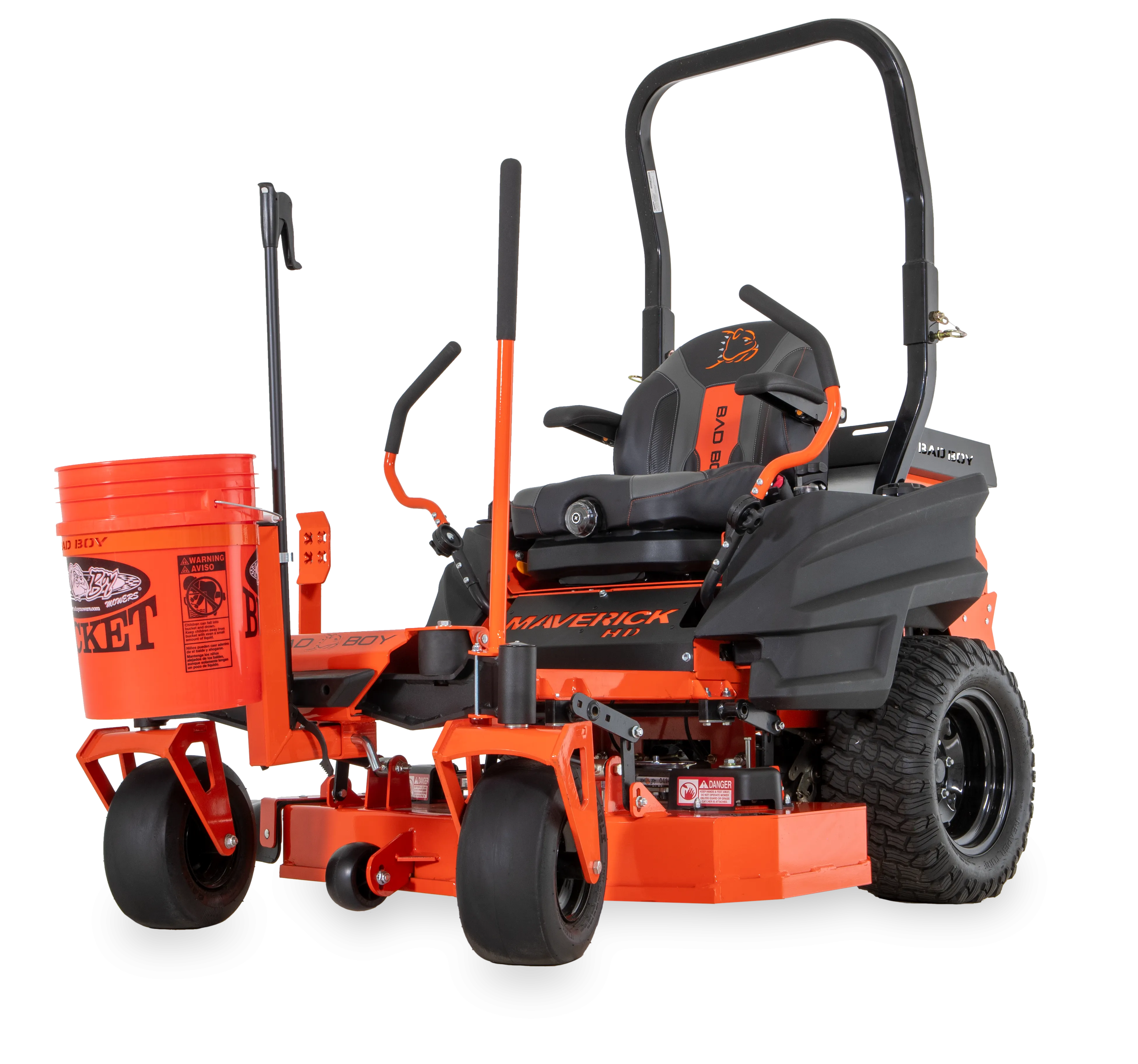

| Bucket and Tongs (must have 093-1140-00 Front Receiver) |
|
Canopies |
|
| Hard Top Canopy (Must have ROPS installed to be compatible) | |
Pull Behind Mower Accessories |
|
| Pull-Behind Utility Trailer | |
| Pull-Behind Roller | |
| Pull-Behind De-thatcher | |
| Pull-Behind Sweeper | |
| Pull-Behind Lawn Sweeper | |
| Pull-Behind Aerator | |
| Pull-Behind Sprayer | |
| Sprayer Boom | |
Bumper Kits |
|
| 8" Bumper Kit | |
| 14" Bumper Kit | |
Tire Options |
|
| 13 x 6.50-6 No Flat Front Tire & Wheel Assembly (Black) | |
| 13 x 6.5 x 6 Front Tweel (1 Tweel) | |
| Black Vector Maverick Wheel (1 Wheel) |
|
| Black Vector Maverick Wheel Set (2 Wheels) |
|
| 23 x 10.50 x 12 Bar Lug Chevron Tire (1 Tire) | |
| 23 x 11 x 12 Reaper Tire (1 Tire) | |
Wheel Covers |
|
| 6" Wheel Covers (Pair) | |
| 12" Wheel Covers |
|
Paint |
|
| Touch Up Spray | |
| Touch Up Paint | |
|
Touch Up Pen |
|
Mower Lifts |
|
| Mo Jack Pro Series | |
| Mo Jack EZ Series | |
| Mo Jack XT Series | |
| Ohio Steel Mower Lift | |
___________________________________________________________________________
Specifications
|
Engine |
Kohler 747cc, 25hp Air Cooled V-Twin Command CV742 |
| Suspension | E-Z Ride® Patented Compression Rear Suspension with Independent Front Suspension Rails |
| Transmission | 3400 Hydro-Gear® 12cc Integrated Transaxle |
| Deck Thickness | 3/16" Thick Solid Steel |
| Cutting Height | 1.5"-4.5" With Deck Height Control System |
| Lift and Height Adjustment | Foot-Assisted Manual Lift With Dial-Style Height Adjustment. Optional Electric Lift. |
| Rear Tires/Front Tires | 23 x 11-12 Turf / 13 x 6.5-6 Smooth, No Flat |
| Fuel | 6.5 Gallons; Unleaded Gasoline |
| Ground Speed (Forward) | Up to 10 mph |
| Cutting Width | 54" |
| Weight | 1048 lbs |
| Overall Height/Length | 47"/80" |
| Chute Up/Chute Down Width | 58"/61" |
| Warranty | 2 Year Limited |
