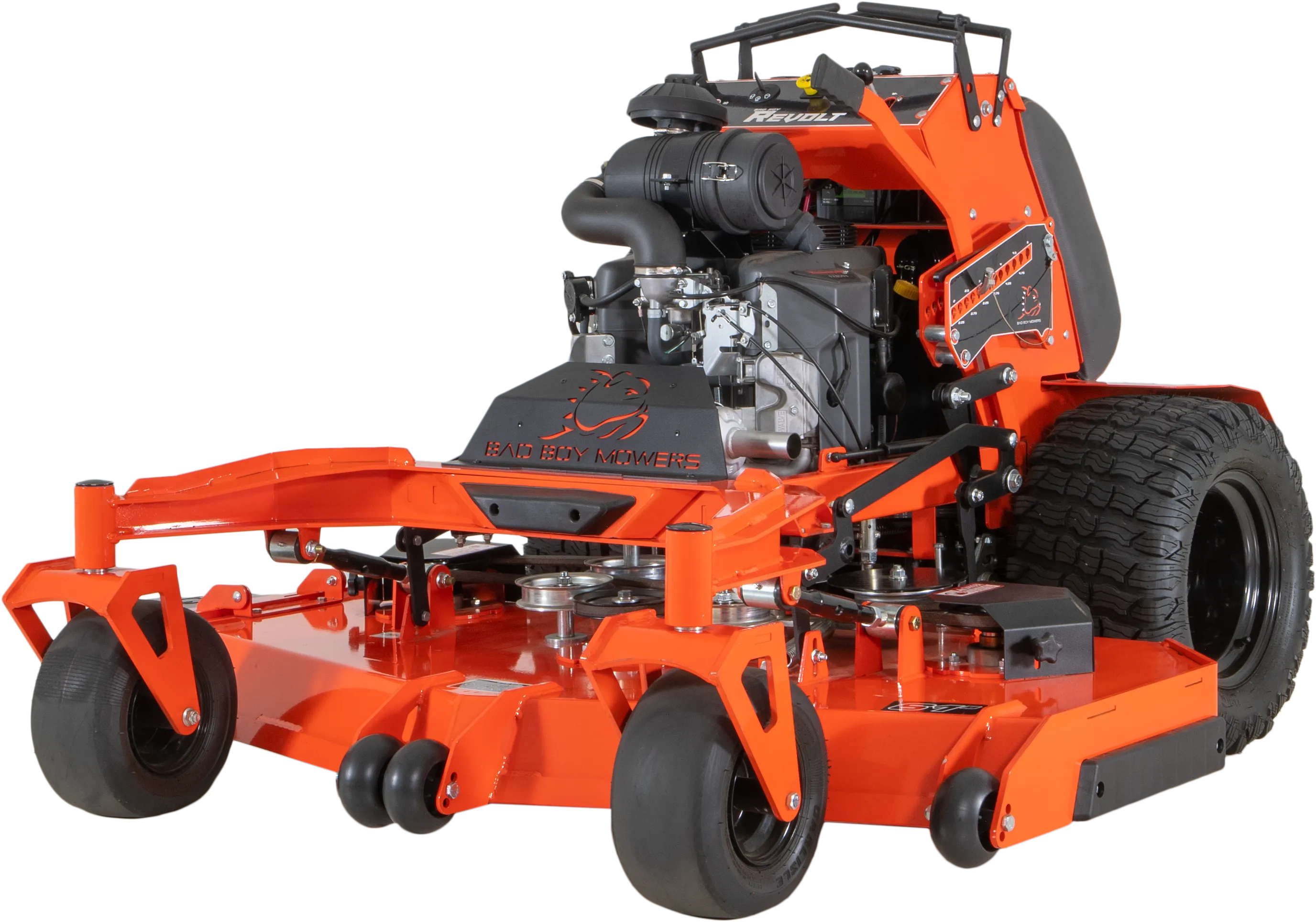

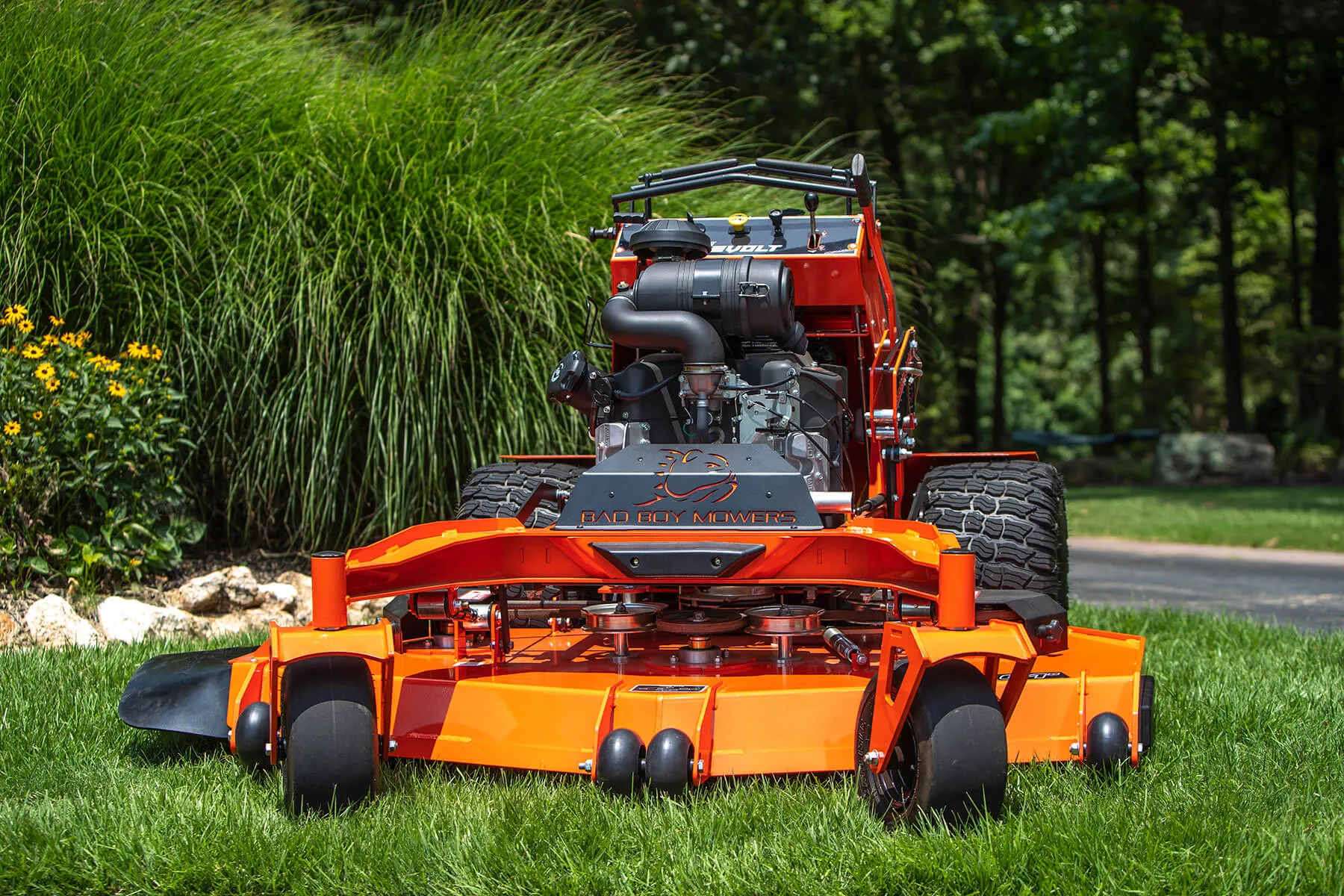

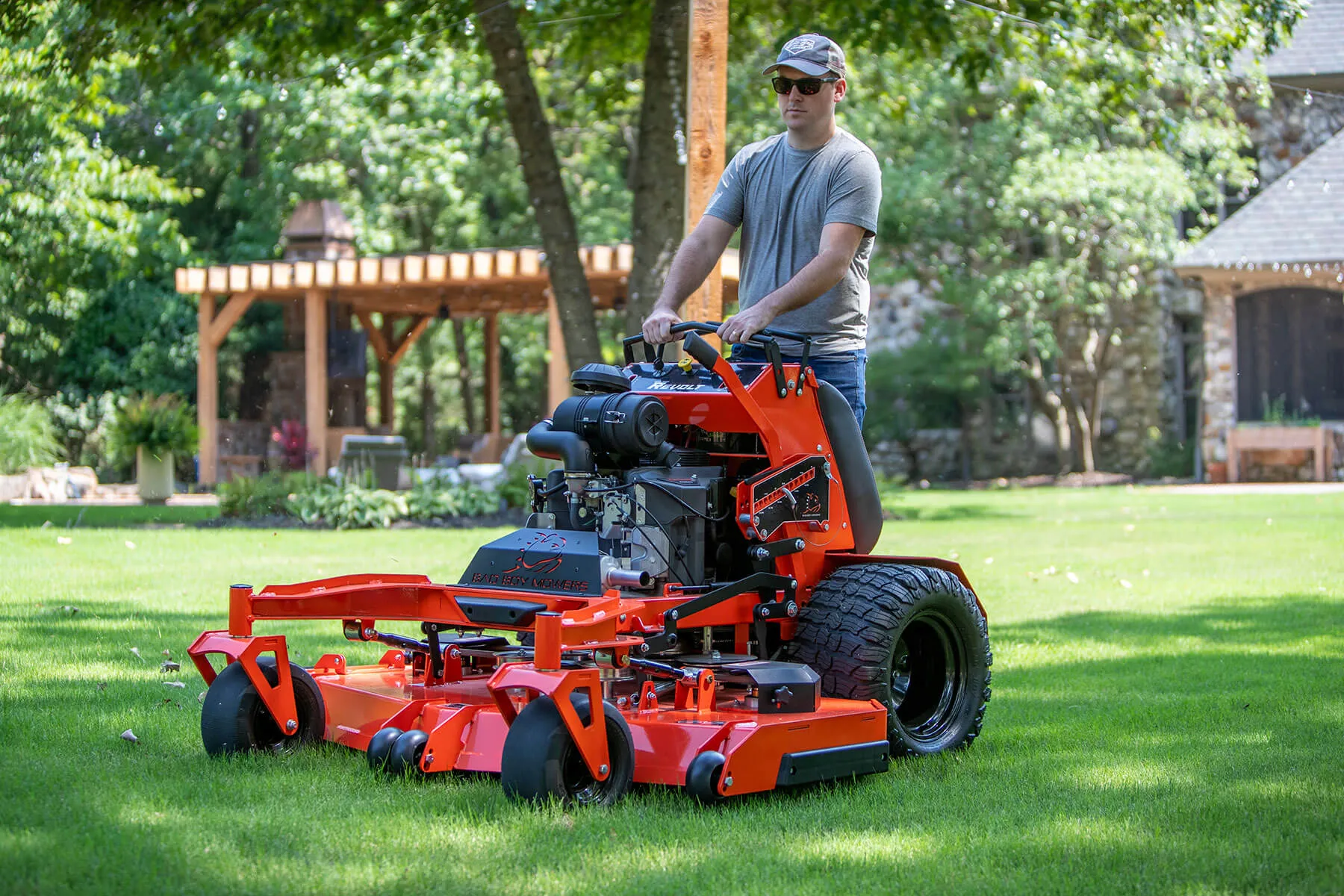

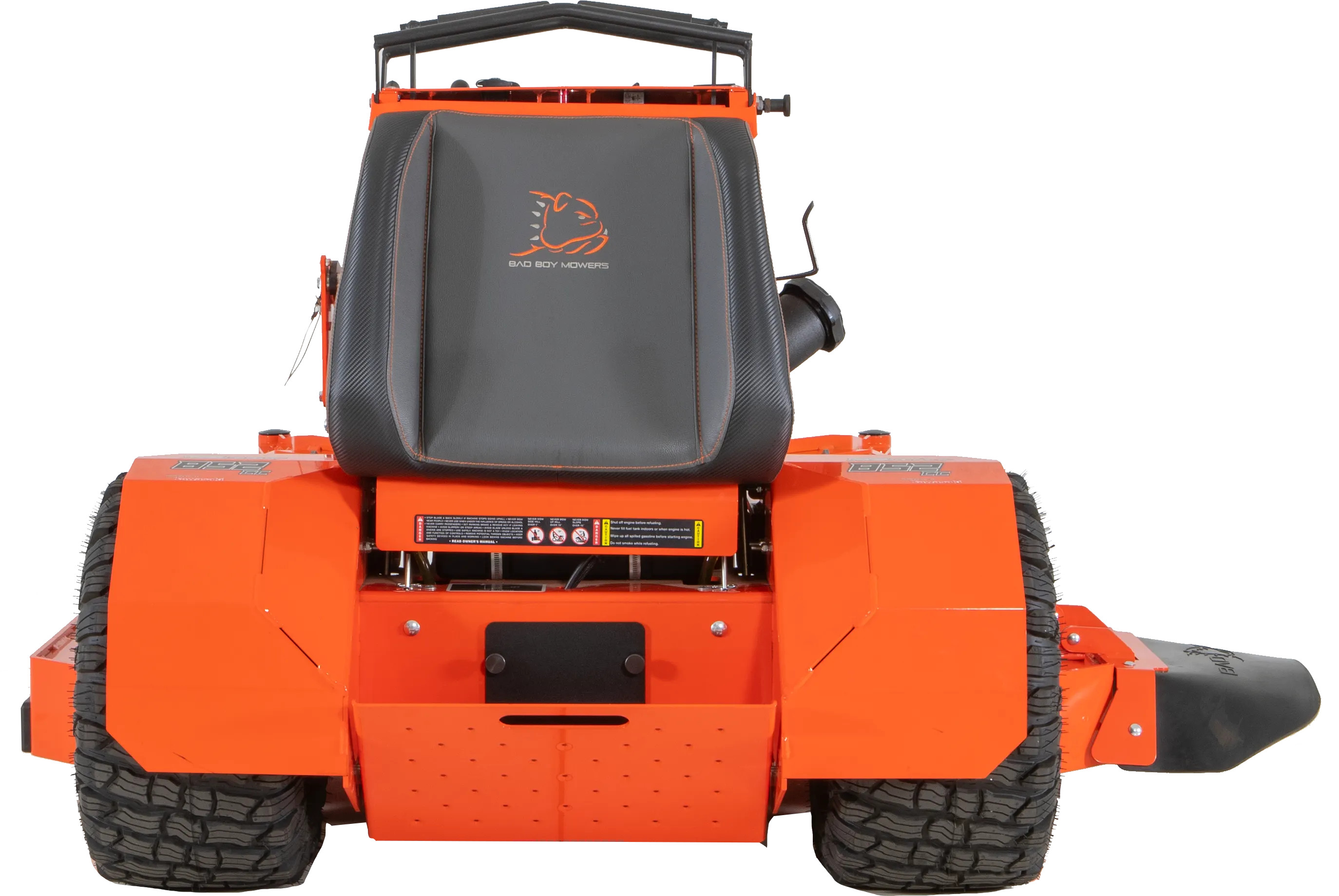

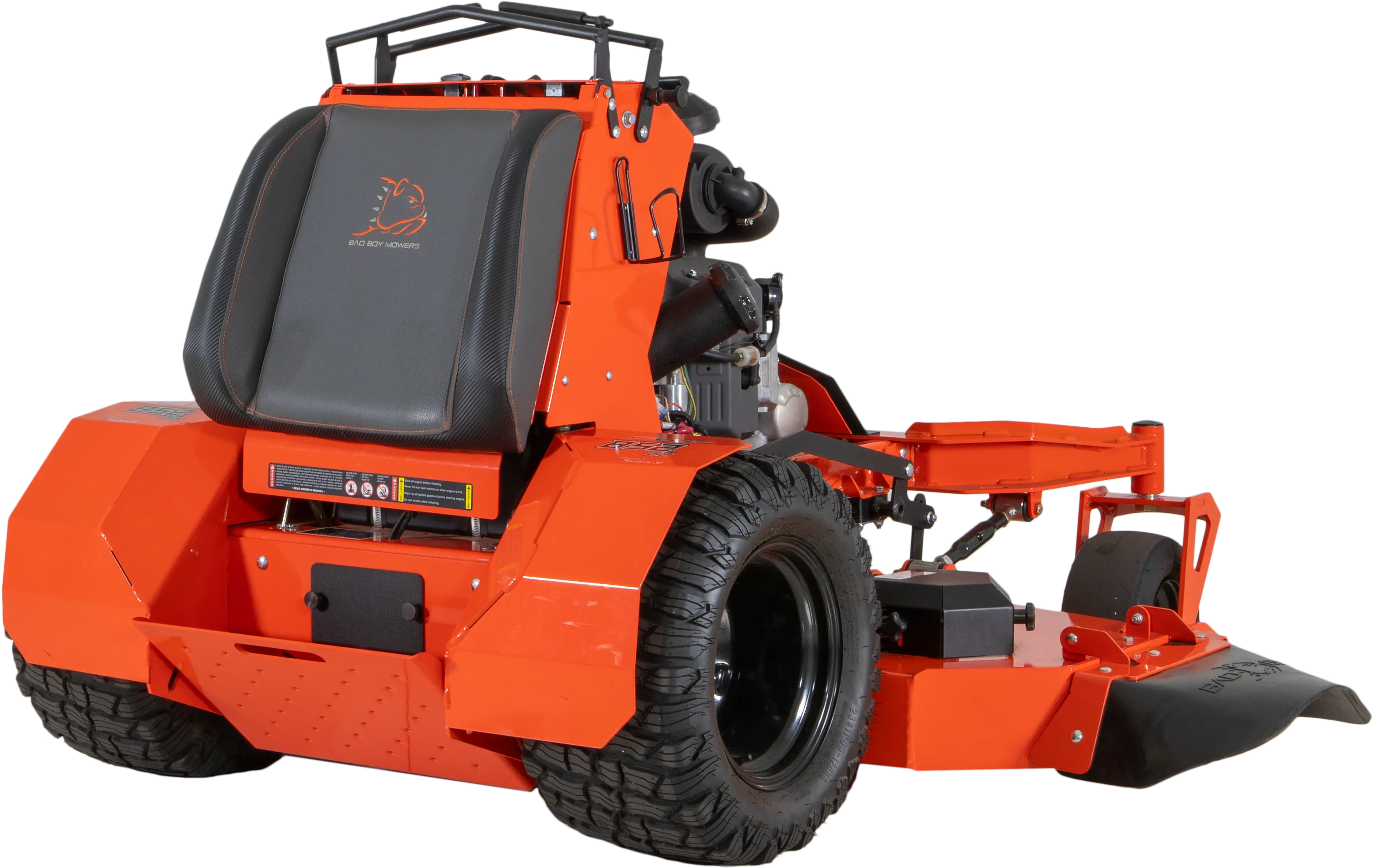

Name: Bad Boy Revolt 54" Stand-On Zero-Turn Mower w/ 31hp Kawasaki EVO781 EFI
SKU: 103116

Warranty

2 Year Limited, 200 Hour
3 Year Limited Engine

Literature

THE STAND-ON MOWER WITH STAND-OUT PERFORMANCE

Improved in every way and featuring improved performance, operator ease-of-use, and durability. Visibility is improved with a new, shorter frame and curved iBeam front fork support. The rear tires are larger and the fuel tank is now located in the center of the machine, with the operator standing between the rear tires, resulting in a lower center of gravity. It makes the Revolt one of the most maneuverable and balanced Stand-Ons around.

A REVOLUTIONARY STAND ON MOWER

Dual High-Performance Hydro-Gear Integrated Drive Systems for reliable, self-contained power and performance. Curved iBeam front rail and steel 3/8˝ front forks and 3 1/8˝ trail for smooth directional changes. More compact than most Stand-Ons, the Revolt is shorter in length for better in and around cutting. Patented Dual Deck Support Isolators, paired with deck wear pads, minimize damage from any side impact.

STANDARD FEATURES

Dual Hydro-Gear Performance Integrated Drive Systems
Curved I-Beam Front Rail
3/8˝ Steel Front Forks and 3 1/2˝ Trail for Smooth Directional Change
7-Gauge All Steel, Formed, and Welded Deck with Reinforced Edges
PEER, Maintenance-Free Spindles

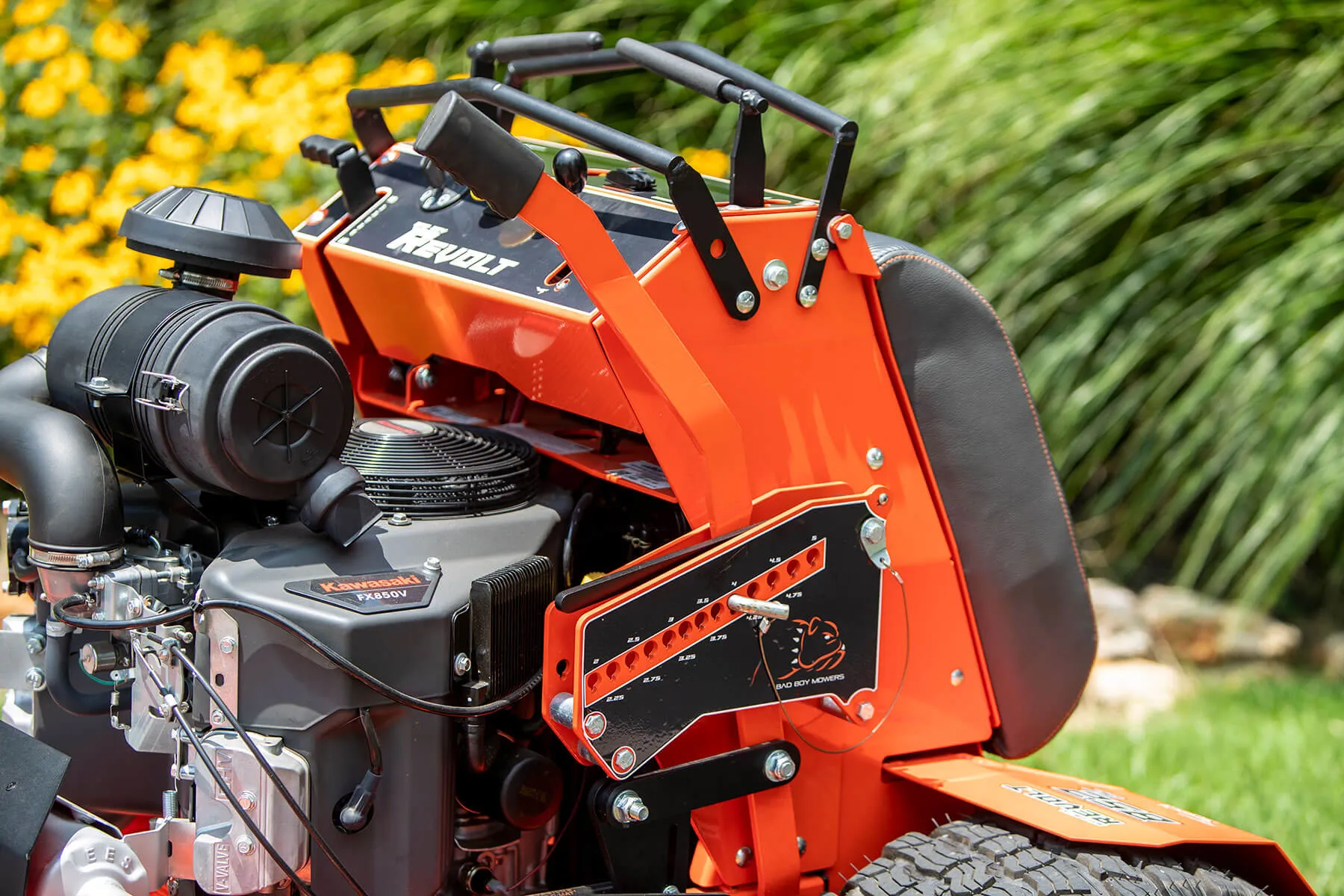

Side Mount Deck Lift Adjustment
Quick Access Panel for Drive and Belt Maintenance
Three-Position Speed Control
Adjustable Rubber Suspension Riding Platform
Flip-Up Quick Access Panel for Maintaining Battery, Control Arm, and Hydro-Tanks.
Electric PTO
Ergonomic Thigh Pad fits Operators of All Sizes

STAND UP STRENGTH

Heavy-gauge, all-steel, all-welded, and fabricated 1.5˝ x 3˝ frame rail provide the backbone for years of durable service. Three-position speed control provides smoother operation in the tightest of spaces. The quick-access panel to the deck and drive belts, with the flip-up thigh pad revealing the battery, control arms, and hydro tanks, makes the Revolt the easiest to service in the industry. Features a sloped 7 gauge steel deck with reinforced 3/8˝ sides. Larger rear tires provide excellent grip and traction.

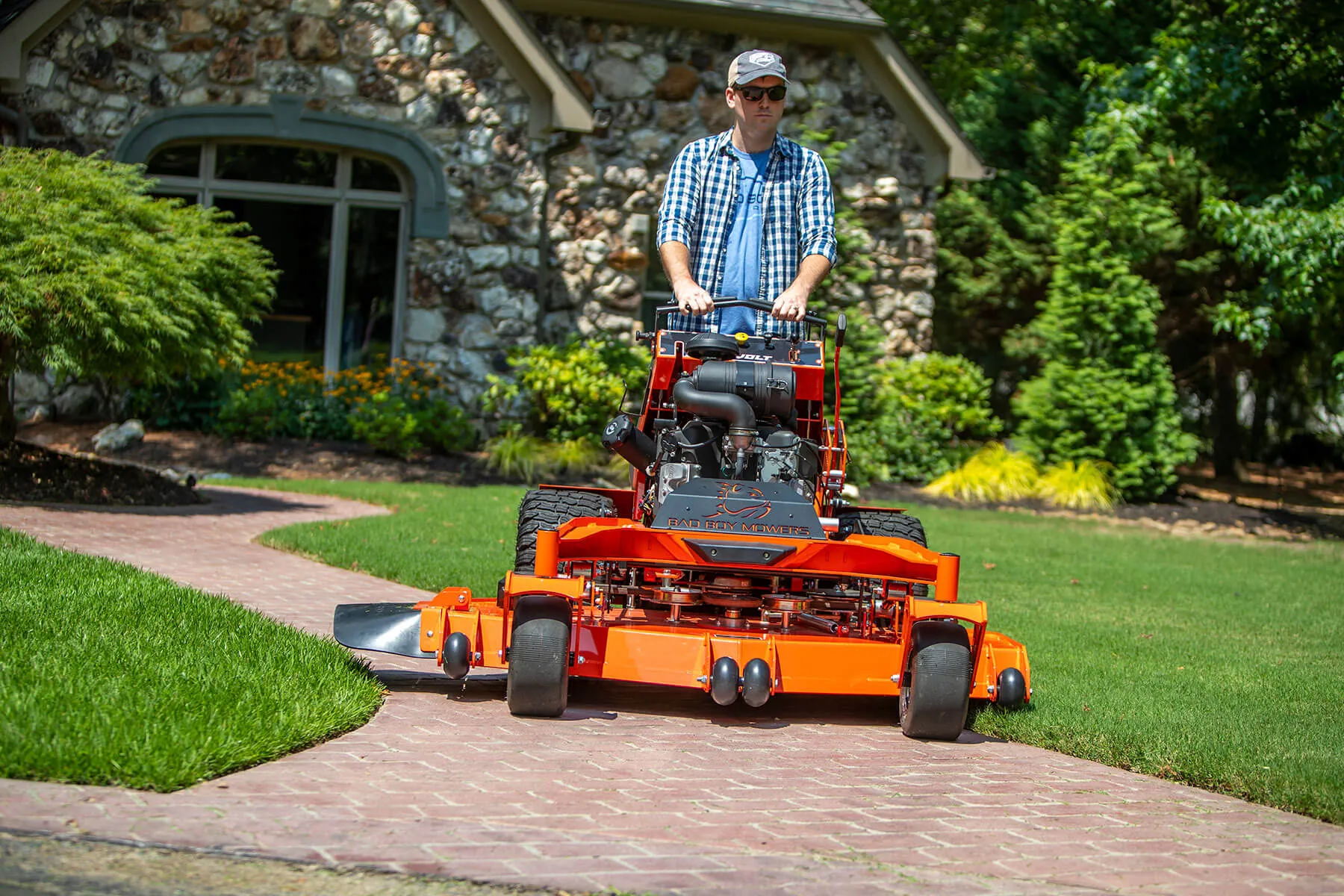

COMFORT IN A SMALL PACKAGE

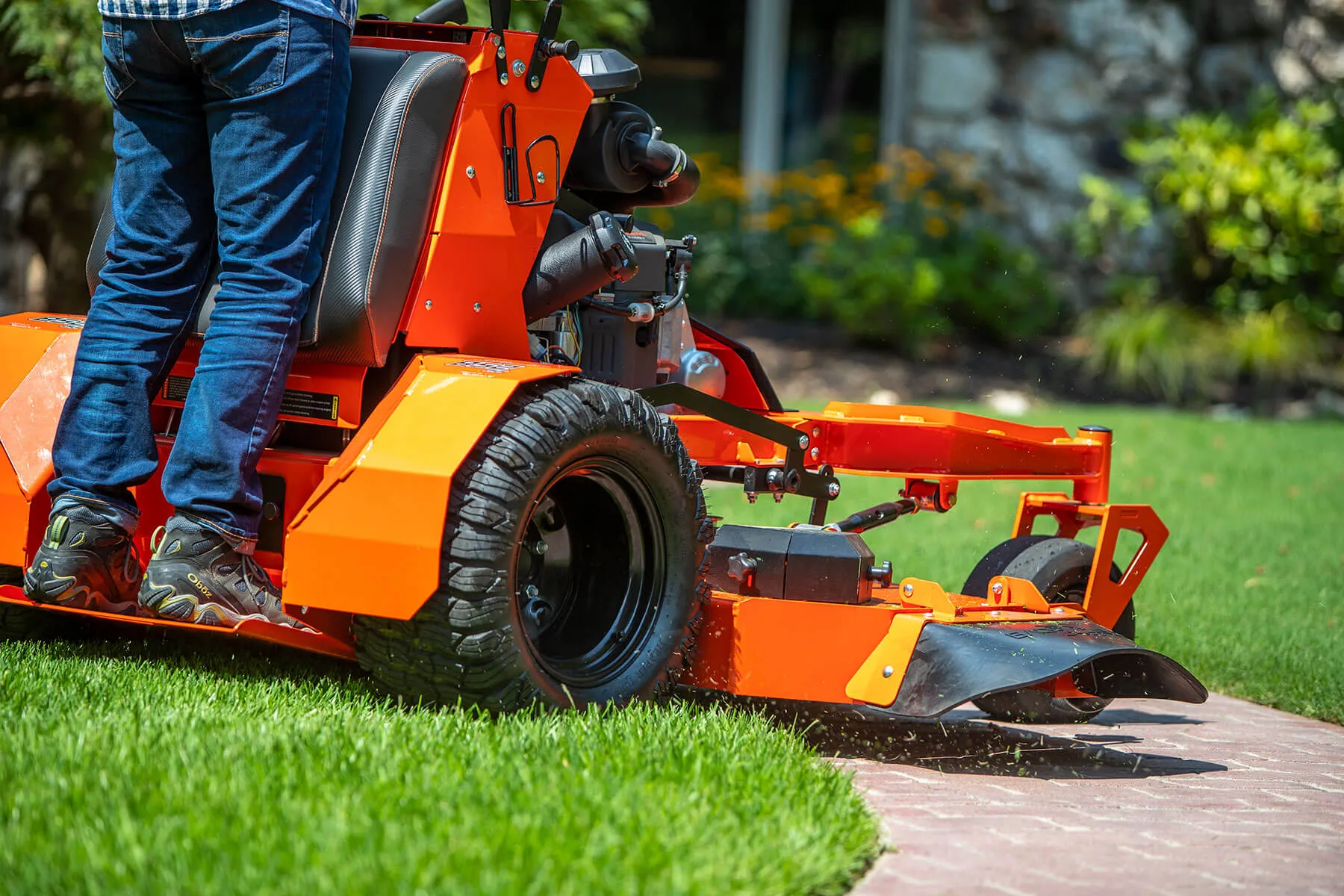

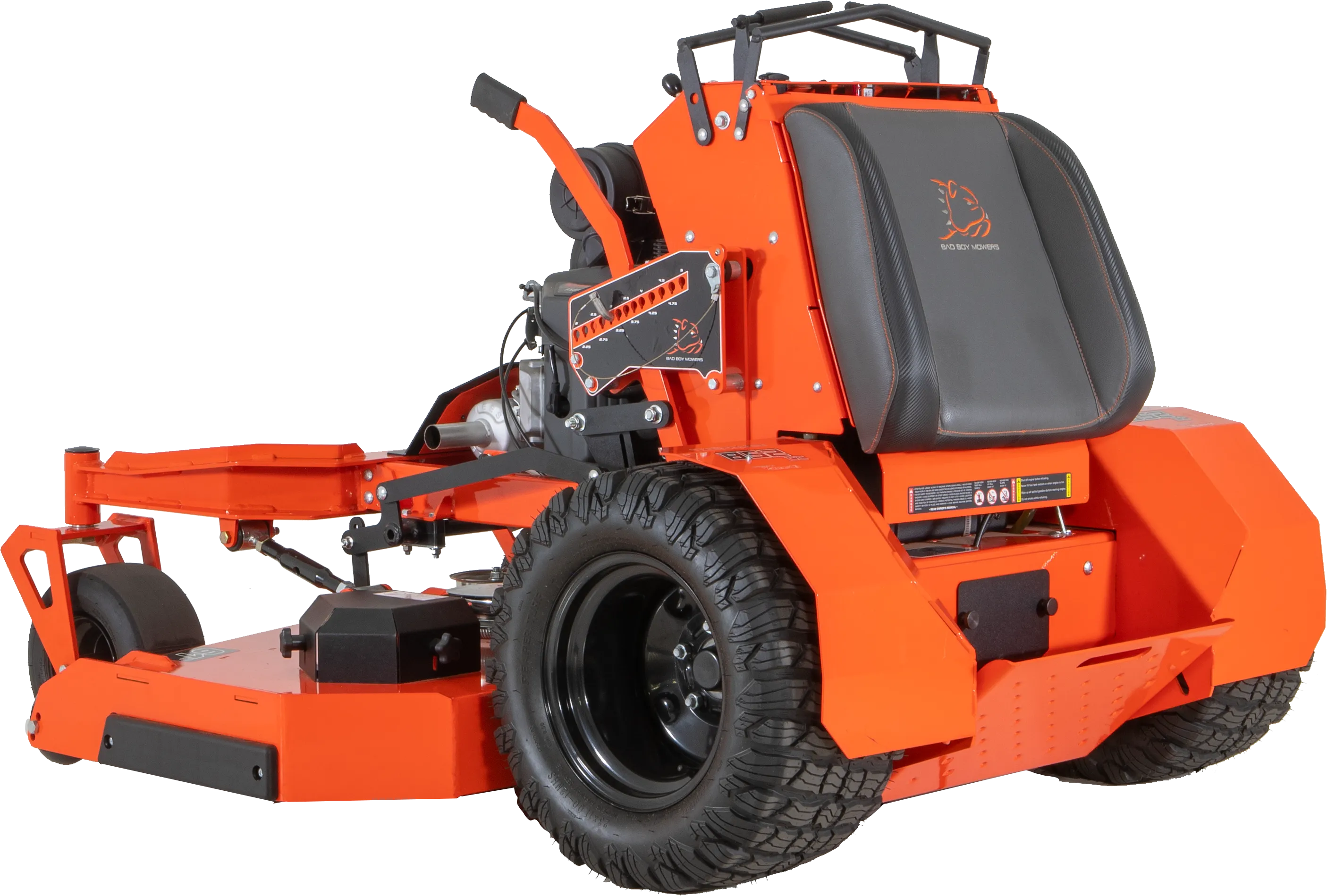

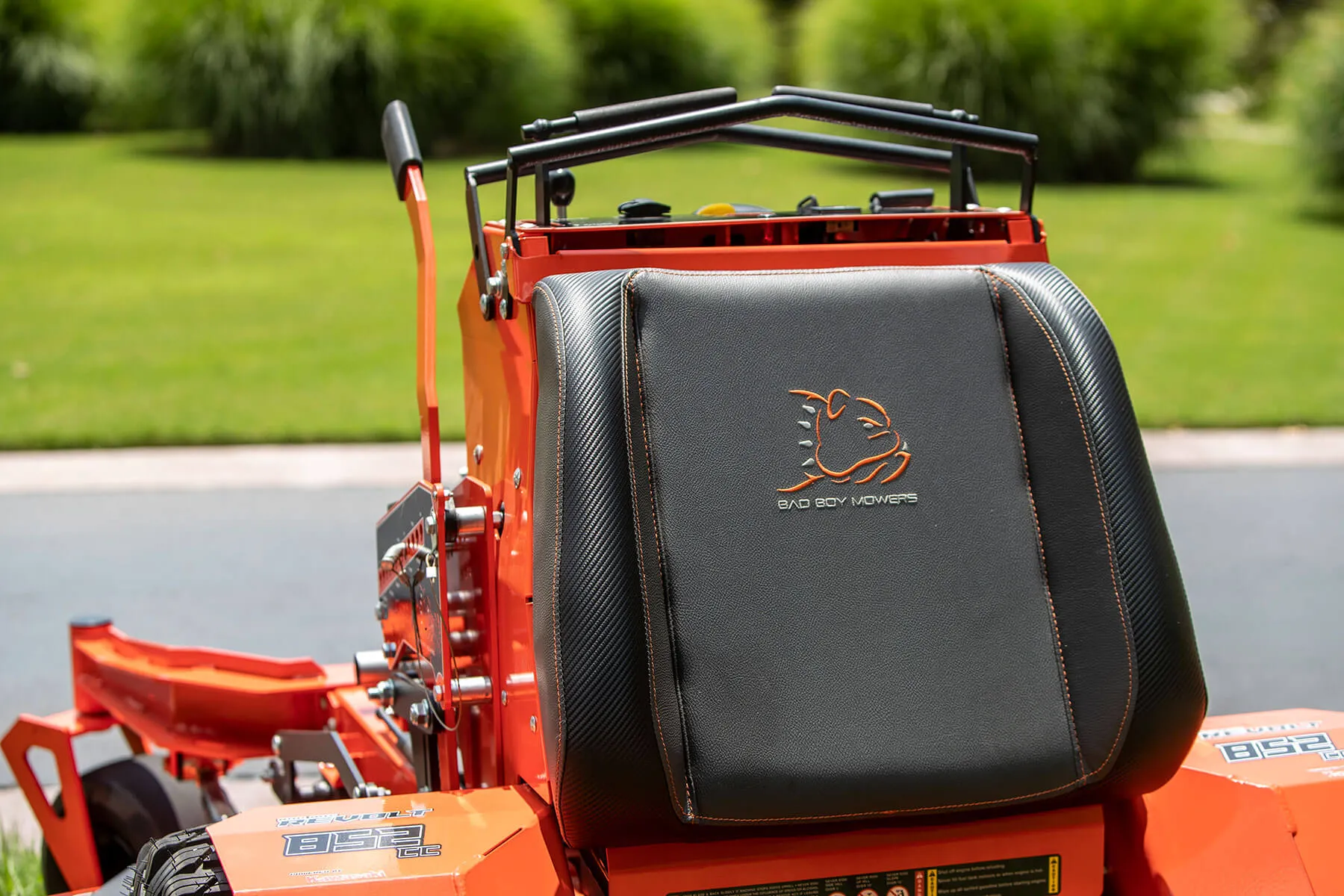

Bad Boy's adjustable rubber suspension riding platform absorbs vibrations normally passed along to the rider’s knees and joints and the soft, ergonomic thigh pad accommodates operators of all heights and provides all-day mowing comfort. The Revolt can get you into even tighter spaces with smaller 36˝ or 48˝ deck cutting widths available.

Revolt Accessories
Advanced Chute System
Mower Cover
Loading Ramps
Revolt LED Light Kit
54" Mulching Kit w/ Blades
54" Gator Mulching Blade
54" Wavy Mulching Blade
Operator Leaning Pad
Revolt Pad
Bagging Systems
Bad Boy Revolt Side Bagger
Revolt 2 Bagger System
Accelerator Grass Catcher for Revolt
Hitch Kits & Related Accessories
2" Front Receiver (Hardware Included)
Receiver Hitch (Slide In)
Bent Hitch Pin for Slide In Hitch

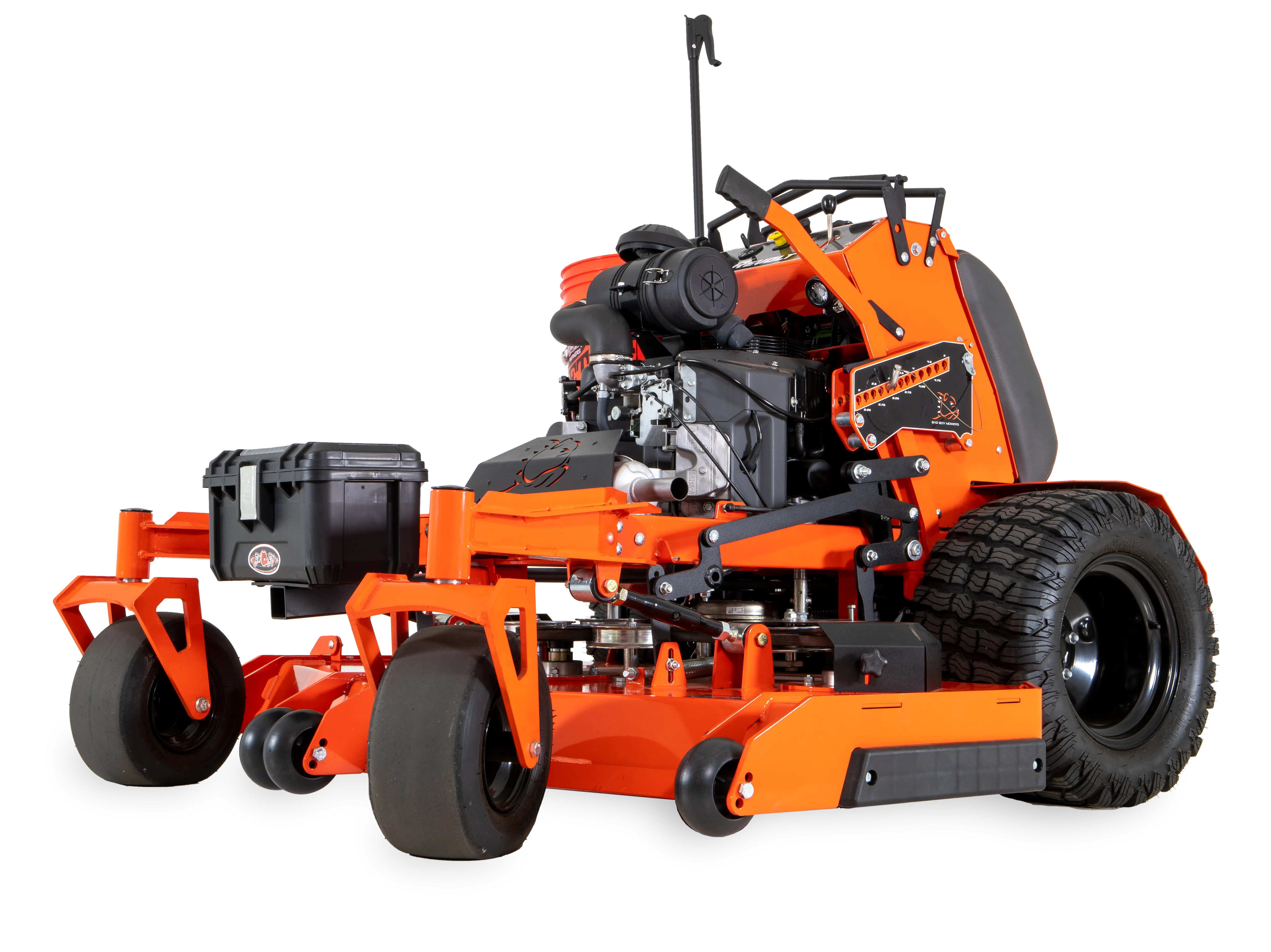

Front Mount Tool Box (must have 093-1126-00 Front Receiver)
Front Mount Cargo Basket (must have 093-1126-00 Front Receiver)
Bucket & Tong Set
Tire Options
13 x 6.50-6 No Flat Front Tire & Wheel Assembly (Black)
Front Tweels 13 x 6.5 x 6 (1 Tweel)
Wheel Covers
6" Wheel Covers (Pair)
12" Wheel Cover (Single)
Paint
Touch Up Spray
Touch Up Paint
Touch Up Pen

___________________________________________________________________________

Specifications

Engine	Briggs Vanguard 810cc, 28hp Air-Cooled EFI
Transmission	3400 Hydro-Gear^® 12cc Integrated Transaxle
Deck Thickness	3/16" Thick Solid Steel
Cutting Height	2"-5" With Deck Height Control System
Lift and Height Adjustment	Manual Lift
Rear Tires/Front Tires	23 x 9-12 Turf /13 x 6.5-6 Smooth
Fuel	6.5 Gallons; Unleaded Gasoline
Ground Speed (Forward)	Up to 9 mph
Cutting Width	54"
Weight	980 lbs
Overall Height/Length	48"/63"
Chute Up/Chute Down Width	56.5"/68.5"
Warranty	2 Year Limited
